Our premium Triangle Aluminum Tube Truss system delivers exceptional stability and versatility for all your event staging needs. Engineered with high-grade aluminum alloy, this modular truss structure features a robust triangular design that ensures maximum load-bearing capacity while maintaining a lightweight profile. Perfect for outdoor concerts, festivals, and corporate events, the system includes a weatherproof roof configuration and customizable platform options. The precision-welded joints and quick-lock connections allow for rapid assembly and breakdown, saving valuable setup time. Whether you need a compact stage or a large-scale performance space, our truss system can be customized to your exact specifications. The corrosion-resistant finish and professional-grade construction ensure long-lasting durability in any environment. Compatible with various lighting fixtures and audio equipment, this truss system provides the ideal framework for creating impressive event productions that meet international safety standards.




Name |

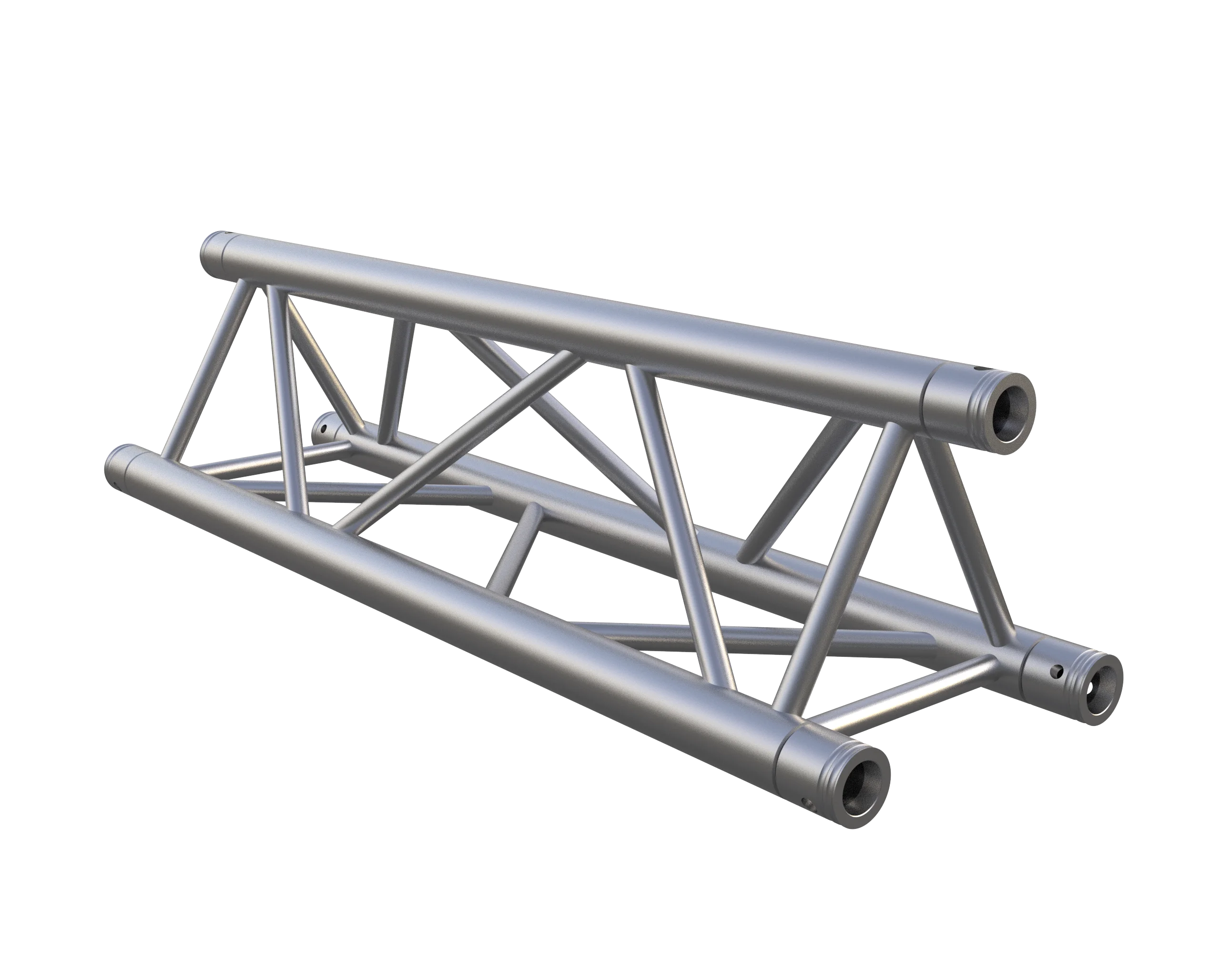

Triangle Aluminum Spigot Truss |
||||||
Material |
Aluminum alloy 6061-T6/6082-T6 |
||||||
Origin |
Foshan, Guangdong |
Can it be customized |
Yes |
||||
Connection method |
Spigot connection, quick installation |
||||||
Length |
1m/2m/3m/4m etc or customized size |
||||||
Type |
Ladder truss, Triangle truss, Square truss, Circle truss, Arc truss, etc. |
||||||
Tube size |
Main tube Ф50*3/50*2MM, horizontal tube Ф20*2/25*2/50*2MM, brace tube Ф20*2/25*2MM,3 sides brace tube. |
||||||
Size |
100*100、150*150、200*200、290*290、300*300、400*400、450*450、 400*600、500*600、520*520、600*760、670*1010, etc. |
||||||
Remarks |
You can choose the corresponding truss size according to the length and load-bearing capacity. Engineers with more than ten years of experience can provide you with professional technical support. |
||||||
